SURCAL

The Surveillance Calibration satellites were a series of radar calibration satellites for the Naval Space Surveillance radar system. They were launched in the 1960s.

Last revised
Jun 24, 2026
Read time
≈ 2 min
Length
460 w
Citations
24
Source
Wikipedia ↗

The Surveillance Calibration (or SURCAL) satellites were a series of radar calibration satellites for the Naval Space Surveillance radar system. They were launched in the 1960s.

Background

SURCAL 5 source ↗

The SURCAL series of satellites were produced by the Naval Research Laboratory to act as test and calibration targets for the Naval Space Surveillance radar. The first SURCAL satellite was intended to remain attached to the launch vehicle1 and was a 5.5 inch long, 5.5 inch diameter cylinder.2 The other four SURCAL satellites were box-shaped with solar panels, a transponder, and antennas.3 They transmitted a 216 MHz signal on command.4

Launches

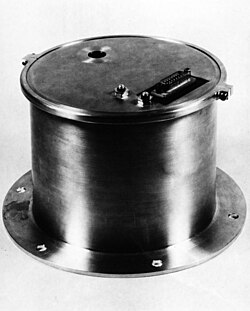

SURCAL 1 source ↗
SURCAL Satellites
Name COSPAR5 Launch date5 Rocket6 Mass (kg) Re-entry 7
SURCAL 1 N/A 24 January 1962 Thor-Able-Star1 98.5 kg8 Launch failure
SURCAL 2a 1962 B Tau 4 13 December 1962 Thor-Agena-D10 37 kg9 18 Jan 1966
SURCAL 3b 1962-021F 15 June 1963 Thor-Agena-D10 3 kg11 5 Jul 1963
SURCAL 4c 1965-016G 9 March 1965 Thor-Agena-D10 5 kg12 27 March 1981
SURCAL 5 1965-065K 9 March 1965 Thor-Able-Star10 In orbit
  1. Also listed as SURCAL 1A9
  2. Also listed as SURCAL 1B6
  3. Also listed as SURCAL 2B6

Other vehicles

Astronautix includes passive satellites such as the SURCAL 150B and SURCAL 160 target objects as part of the SURCAL program.6
