L-SAM

The L-SAM is a South Korean long range surface-to-air and anti-ballistic missile system developed by the Agency for Defense Development (ADD), Hanwha, and LIG Nex1. The performance levels are comparable to the American THAAD and the Israeli Arrow 2 and Arrow 3. L-SAM serves as a key system in South Korea's Korean Air and Missile Defense (KAMD).

Last revised
Jun 6, 2026
Read time
≈ 4 min
Length
1,019 w
Citations
40
Source
Wikipedia ↗
Long-range Surface-to-Air Missile
장거리 지대공 미사일

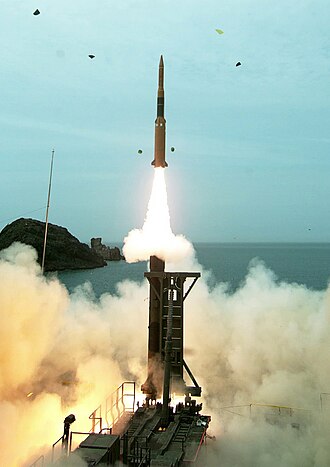

A ballistic missile intercept testing of L-SAM conducted on 20 June 2023.
TypeLong-range, mobile surface-to-air missile/anti-ballistic missile system
Place of originSouth Korea
Service history
In service2028 (planned)12
Used byRepublic of Korea Air Force
Production history
Designer
Designed
  • Block 1: 2019–2024125
  • Block 2: 2025–2028 (planned)6
Manufacturer
  • Hanwha Aerospace4
  • LIG Defense & Aerospace
Produced2025 (planned)12
Specifications
LengthAnti-ballistic missile: 7 meters (23 ft)6
EngineDual-pulsed rocket motor7
Operational
range
  • Block 1: 150 km (93 mi)5
  • Block 2 HAI: 450 km (280 mi)87
Flight ceiling
  • Block 1: 60 km (37 mi)910
  • Block 2 HAI: 180 km (110 mi)87
Maximum speedMach 9 (3,100 m/s; 11,000 km/h)11
Guidance
system
Imaging infra-red seeker7

The L-SAM (Long-range Surface-to-Air Missile; Korean: 장거리 지대공 미사일; Hanja: 長距離地對空미사일; RR: Janggeori Jidaegong Misail) is a South Korean long range surface-to-air and anti-ballistic missile system developed by the Agency for Defense Development (ADD), Hanwha, and LIG Nex1.3 The performance levels are comparable to the American THAAD and the Israeli Arrow 2 and Arrow 3. L-SAM serves as a key system in South Korea's Korean Air and Missile Defense (KAMD).12

The development of L-SAM Block 1 was officially completed in May 2024 and was declared fit for combat by the Defense Acquisition Program Administration (DAPA).12

Development and design

The L-SAM was developed with the aim of shooting down ballistic missiles such as North Korea's Hwasong-11A (KN-23) and Hwasong-11B (KN-24) in the terminal phase.10 It will be an upper-tier surface-to-air missile system for multi-layered defense as part of Republic of Korea Air Force's Korean Air and Missile Defense (KAMD) project, which has been planned since the early 2020s, with the lower tier composed of Patriot PAC-3 and KM-SAM batteries.313

The L-SAM system is expected to use two types of interceptors: one for anti-air meant to target general air breathing threats such as aircraft or cruise missiles and the other for anti-ballistic. The anti-ballistic missile (ABM) consists of total of a three stages and uses a hit-to-kill system that intercepts targets with a kill vehicle that integrates an imaging infra-red (IIR) seeker and a divert attitude control system (DACS), and can intercept missiles approaching at an altitude of 50–60 kilometers (160,000–200,000 ft).6910 L-SAM demonstrated its intercept capability by succeeding three out of a total of four missile interception tests between November 2022 and June 2023.14

The development of L-SAM Block 1 was completed in May 2024, and initial mass production will begin in 2025 and will be deployed to the Republic of Korea Air Force from 2028.12

Operational Concept

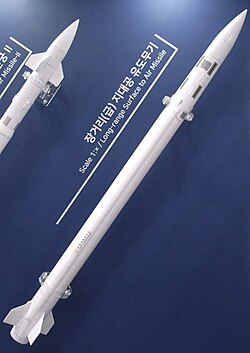

A scale model of L-SAM's anti-aircraft missile (AAM) source ↗
1
2
3
4
5
6
7
1
Low Altitude Missile Defense (LAMD) anti-artillery interceptor
2
M-SAM Block 2 medium-range lower tier air defense system
3
M-SAM Block 3 boost phase interceptor (BPI)
4
PAC-2 and PAC-3 complementary air defense system
5
L-SAM Block 2 glide phase interceptor (GPI)
6
L-SAM Block 1 long-range multi-layered air defense system
7
L-SAM Block 2 high altitude interceptor (HAI)

Battery configuration

The L-SAM battery is composed of a multifunction radar, a command-and-control (C2) center, a combat control station, and four truck-mounted launchers, two of each missile type.510 It will use a trailer-mounted S-band AESA radar.1516

Improvements

Block 2

On 25 April 2023, the 153rd Defense Acquisition Program Promotion Committee deliberated and approved on a plan to develop a new missile defense system with a higher intercepting altitude than the existing L-SAM with a budget of 2.71 trillion won by 2027. The new missile system, named L-SAM 2, includes high-altitude interceptor (HAI) missiles and glide phase interceptor (GPI) missiles, and is estimated to have an interception altitude of 180 km.8
