Diesel locomotive - mobile power station
Type and origin Power type Diesel Builder Kambarka Engineering Works Build date 1980 - 1993 - today
Specifications Configuration: ​  • UIC B'B' Gauge 750 mm (2 ft 5+1⁄2 in) Driver dia. 600 mm (23.62 in) Minimum curve 40 m (131.23 ft) Length 9,010 mm (29 ft 6+3⁄4 in) Width 2,550 mm (8 ft 4+3⁄8 in) Height 3,495 mm (11 ft 5+5⁄8 in) Axle load 4 t (3.9 long tons; 4.4 short tons) Loco weight 16 t (15.7 long tons; 17.6 short tons) Fuel type Diesel Prime mover ЯМЗ-236М Engine type V-shaped Transmission mechanical
Performance figures Maximum speed 50 kilometres per hour (31 mph) Power output 180 hp (130 kW)
Career Class RUS - TU6SPA / (ТУ6СПА) Belarus - TU6SPA / (ТУ6СПА) Ukraine - TU6SPA / (ТУ6СПА)

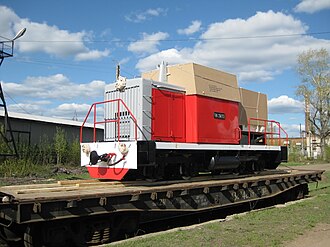

TU6SPA (ТУ6СПА) is a Soviet, later Russian diesel locomotive and mobile power station for 750 mm (2 ft 5+1⁄2 in) track gauge.

Diesel locomotive TU6SPA (ТУ6СПА) is a sub-type of the TU8 diesel locomotive equipped with an electric generator used for energy supply to non self-propelled heavy-duty track machines. The TU6SPA was developed in 1987–1993 at the Kambarka Engineering Works to replace the aging locomotive classes TU6SRP (ТУ6СРП). The TU6SPA was designed to be used on any gauge from 750 mm (2 ft 5+1⁄2 in). The cab is equipped with efficient heat-system, refrigerator, radio-set and air conditioning.¹

• Electric generator
• Number of seats in the cabin – 6
• Distance between bogies – 4,000 mm (157.48 in)
• Base of bogies – 1,400 mm (55.12 in)
