KUR EC3 class

Specifications
Specifications
Configuration:;
• Whyte	4-8-4+4-8-4 (Garratt)
• UIC	(2′D2′)(2′D2′) h4
Gauge	1,000 mm (3 ft 3+3⁄8 in)
Driver dia.	4 ft 6 in (1,372 mm)
Width	9 ft 6 in (2,900 mm)
Height	12 ft 5.5 in (3.797 m)
Adhesive weight	97 long tons (99 t)
Loco weight	186.2 long tons (189.2 t)
Fuel type	Coal
Fuel capacity	12 long tons (12 t)
Water cap.	6,000 imp gal (27,000 L; 7,200 US gal)
Firebox:
• Grate area	48.5 sq ft (4.51 m2)
Boiler pressure	220 psi (1.52 MPa); (225 psi (1.55 MPa));
Heating surface:
• Firebox	169 sq ft (15.7 m2)
• Tubes	; 1,963 sq ft (182.4 m2)
• Total surface	2,561 sq ft (237.9 m2)
Superheater:;
• Type	Inside
• Heating area	429 sq ft (39.9 m2)
Cylinders	4 (Garratt)
Cylinder size	16 in × 26 in (406 mm × 660 mm)
Valve gear	Walschaerts
Valve type	Trunk type
Valve travel	5 in (130 mm)
Loco brake	Westinghouse type
Train brakes	Westinghouse type
Safety systems	3 Ross muffled pop valves

Type and origin
Type and origin
Power type	Steam
Designer	Beyer, Peacock & Co.; K.C. Strahan; H.B. Stoyle;
Builder	Beyer, Peacock & Co.
Serial number	6905–6910, 6970–6975
Build date	1939, 1940
Total produced	12

Kenya-Uganda Railway EC3 class
East African Railways 57 class
Kenya-Uganda Railway EC3 class; East African Railways 57 class;

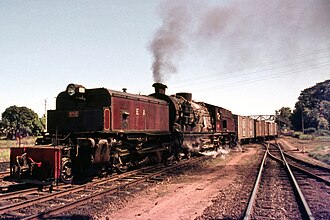

	No. 5712 Kigezi with a freight train at Mombasa, Kenya, in 1969
Power type
Type and origin
Power type	Steam
Designer	Beyer, Peacock & Co.; K.C. Strahan; H.B. Stoyle;
Builder	Beyer, Peacock & Co.
Serial number	6905–6910, 6970–6975
Build date	1939, 1940
Total produced	12
Configuration:;
Specifications
Configuration:;
• Whyte	4-8-4+4-8-4 (Garratt)
• UIC	(2′D2′)(2′D2′) h4
Gauge	1,000 mm (3 ft 3+3⁄8 in)
Driver dia.	4 ft 6 in (1,372 mm)
Width	9 ft 6 in (2,900 mm)
Height	12 ft 5.5 in (3.797 m)
Adhesive weight	97 long tons (99 t)
Loco weight	186.2 long tons (189.2 t)
Fuel type	Coal
Fuel capacity	12 long tons (12 t)
Water cap.	6,000 imp gal (27,000 L; 7,200 US gal)
Firebox:
• Grate area	48.5 sq ft (4.51 m2)
Boiler pressure	220 psi (1.52 MPa); (225 psi (1.55 MPa));
Heating surface:
• Firebox	169 sq ft (15.7 m2)
• Tubes	; 1,963 sq ft (182.4 m2)
• Total surface	2,561 sq ft (237.9 m2)
Superheater:;
• Type	Inside
• Heating area	429 sq ft (39.9 m2)
Cylinders	4 (Garratt)
Cylinder size	16 in × 26 in (406 mm × 660 mm)
Valve gear	Walschaerts
Valve type	Trunk type
Valve travel	5 in (130 mm)
Loco brake	Westinghouse type
Train brakes	Westinghouse type
Safety systems	3 Ross muffled pop valves
Tractive effort
Performance figures
Tractive effort	47,200 lbf (209.96 kN)
Operators
Career
Operators	Kenya-Uganda Railway (KUR); → East African Railways (EAR);
Class	KUR: EC3 class; EAR: 57 class;
Number in class	12
Numbers	KUR: 77–88; EAR: 5701–5712;
First run	1939
Withdrawn	1967
Preserved	KUR 87 (EAR 5711)
Disposition	One preserved, remainder scrapped

The KUR EC3 class, later known as the EAR 57 class, was a class of 1,000 mm (3 ft 3+3⁄8 in) gauge 4-8-4+4-8-4 Garratt-type articulated steam locomotives. The twelve members of the class were built by Beyer, Peacock & Co. in Manchester, England, for the Kenya-Uganda Railway (KUR). They entered service between 1939 and 1941, and were later operated by the KUR's successor, the East African Railways (EAR).¹

Class list

The numbers, build dates and names of each member of the class were as follows:²

Builder's number	Built	KUR number	EAR number	Name	Notes
6905	1939	77	5701	Mengo
6906	1939	78	5702	Teso
6907	1939	79	5703	Uasingishu
6908	1939	80	5704	Narok
6909	1939	81	5705	Marakwet
6910	1939	82	5706	Wajir
6970	1940	83	5707	Chua
6971	1940	84	5708	Gulu
6972	1940	85	5709	Lango
6973	1940	86	5710	Budama
6974	1940	87	5711	Karamoja	Preserved at Nairobi Railway Museum, as KUR 87.
6975	1940	88	5712	Kigezi

KUR 87 Karamoja at Nairobi Railway Museum, 2012 — KUR 87 *Karamoja* at Nairobi Railway Museum, 2012 source ↗

References

Notes

Ramaer 1974, pp. 50–52.
Durrant 1981, p. 189.

Bibliography

Durrant, A E (1981). Garratt Locomotives of the World (rev. and enl. ed.). Newton Abbot, England: David & Charles. ISBN 0-7153-7641-1. OCLC 9326294.
Durrant, A E; Lewis, C P; Jorgensen, A A (1981). Steam in Africa. London: Hamlyn. ISBN 978-0-600-34946-4. OCLC 9014344. OL 15088099M. Wikidata Q111363476.
Patience, Kevin (1976), Steam in East Africa: a pictorial history of the railways in East Africa, 1893-1976, Nairobi: Heinemann Educational Books (E.A.) Ltd, OCLC 3781370, Wikidata Q111363477
Ramaer, Roel (1974). Steam Locomotives of the East African Railways. David & Charles Locomotive Studies. Newton Abbot, North Pomfret: David & Charles. ISBN 978-0-7153-6437-6. LCCN 74182525. OCLC 832692810. OL 5110018M. Wikidata Q111363478.
Ramaer, Roel (2009). Gari la Moshi: Steam Locomotives of the East African Railways. Malmö: Stenvalls. ISBN 978-91-7266-172-1. OCLC 502034710. Wikidata Q111363479.
Staff writer (21 July 1939). "4-8-4t+4-8-4 Metre-Gauge Beyer-Garratt locomotives for the Kenya & Uganda Railways" (PDF). The Railway Gazette. ISSN 0373-5346.
Staff writer (February 1955). ""57" Class Locomotives" (PDF). East African Railways and Harbours Magazine. 2 (1). East African Railways and Harbours: 22. Retrieved 8 December 2014.
