HMG-box

In molecular biology, the HMG-box is a protein domain which is involved in DNA binding. The domain is composed of approximately 75 amino acid residues that collectively mediate the DNA-binding of chromatin-associated high-mobility group proteins. HMG-boxes are present in many transcription factors and chromatin-remodeling complexes, where they can mediate non-sequence or sequence-specific DNA binding.

Last revised
Jul 20, 2026
Read time
≈ 2 min
Length
369 w
Citations
7
Source
Wikipedia ↗
HMG (high-mobility group) box

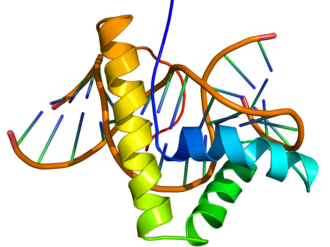

NMR structure of the HMG-box domain of the LEF1 protein (rainbow colored, N-terminus = blue, C-terminus = red) complexed with DNA (brown) based on the PDB: 2LEF​ coordinates.
Identifiers
SymbolPF00505
PfamPF00505
Pfam clanCL0114
ECOD190.1.1
InterProIPR009071
SCOP21hsm / SCOPe / SUPFAM
Available protein structures:
PDB  1aab​, 1cg7​, 1ckt​, 1e7j​, 1gt0​, 1hme​, 1hmf​, 1hry​, 1hrz​, 1hsm​, 1hsn​, 1i11​, 1j3x​, 1j46​, 1j47​, 1j5n​, 1k99​, 1lwm​, 1nhm​, 1nhn​, 1o4x​, 1qrv​, 1s9m​, 1sx9​, 1v64​, 1wgf​, 1wxl​, 2crj​, 2cs1​, 2lef​ IPR009071 PF00505 (ECOD; PDBsum)
AlphaFold

In molecular biology, the HMG-box (high-mobility group box) is a protein domain which is involved in DNA binding.1 The domain is composed of approximately 75 amino acid residues that collectively mediate the DNA-binding of chromatin-associated high-mobility group proteins. HMG-boxes are present in many transcription factors and chromatin-remodeling complexes, where they can mediate non-sequence or sequence-specific DNA binding.2

Structure

The structure of the HMG-box domain contains three alpha helices separated by loops (see figure to the right).3

Function

HMG-box containing proteins only bind non-B-type DNA conformations (kinked or unwound) with high affinity.1 HMG-box domains are found in some high-mobility group proteins, which are involved in the regulation of DNA-dependent processes such as transcription, replication, and DNA repair, all of which require changing the conformation of chromatin.3 The single and the double box HMG proteins alter DNA architecture by inducing bends upon binding.45

References

References

  1. Stros M, Launholt D, Grasser KD (October 2007). "The HMG-box: a versatile protein domain occurring in a wide variety of DNA-binding proteins". Cell. Mol. Life Sci. 64 (19–20): 2590–606. doi:10.1007/s00018-007-7162-3. PMC 11136187. PMID 17599239. S2CID 28156847.
  2. Štros, M.; Launholt, D.; Grasser, K. D. (October 2007). "The HMG-box: a versatile protein domain occurring in a wide variety of DNA-binding proteins". Cellular and Molecular Life Sciences. 64 (19–20): 2590–2606. doi:10.1007/s00018-007-7162-3. PMC 11136187. PMID 17599239. Retrieved 18 February 2023.
  3. Thomas JO (August 2001). "HMG1 and 2: architectural DNA-binding proteins". Biochem. Soc. Trans. 29 (Pt 4): 395–401. doi:10.1042/BST0290395. PMID 11497996.
  4. D. Murugesapillai et al, DNA bridging and looping by HMO1 provides a mechanism for stabilizing nucleosome-free chromatin, Nucleic Acids Res (2014) 42 (14): 8996-9004
  5. D. Murugesapillai et al, Single-molecule studies of high-mobility group B architectural DNA bending proteins, Biophys Rev (2016) doi:10.1007/s12551-016-0236-4
